Hereditary Inclusion Body Myopathy-Linked p97/VCP Mutations in the NH₂ Domain and the D1 Ring Modulate p97/VCP ATPase Activity and D2 Ring Conformation^▿

Generation of p97/VCP recombinant expression constructs.

A wild-type murine p97 cDNA clone in pBluescript SK(+) was a kind gift of Fred Indig (National Institute on Aging, NIH, Baltimore, MD). To introduce hIBMPFTD mutations, p97cDNA was subjected to site-directed mutagenesis using the GeneTailor kit according to the manufacturer's instructions (Invitrogen, Carlsbad, CA). For the R155P mutation, G⁴⁶⁴ in codon ⁴⁶³CGG⁴⁶⁵ was replaced with C using the following primers: 5′ AGGAGATATTTTTCTTGTCCCGGGTGGGATG 3′ and 5′ GGACAAGAAAAATATCTCCTTTACGGATGGGCC 3′. For the A232E mutation, C⁶⁹⁵ in codon ⁶⁹⁴GCG⁶⁹⁶ was mutated to A using primers 5′ ACATCCTGCGCTCTTCAAGGAGATTGGTGTA 3′ and 5′ CCTTGAAGAGCGCAGGATGTCTCAGTGGCAGCT 3′. cDNA of the ATP-binding-deficient mutant p97^K524A in the pQE9 vector was a kind gift from T. Rapoport (Harvard University, Cambridge, MA). Subsequently, all constructs were subcloned into the pTrcHis2C vector backbone (Invitrogen, Carlsbad, CA) for COOH-terminal polyhistidine tagging by PCR. Briefly, cDNA was amplified using the primers 5′ CCGAGCTCGGCCTCTGGAGCCGAT 3′ and 5′ ATGGTACCAGCGGCATACAGGTCATC 3′, which contained SacI and KpnI restriction sites, respectively. Following restriction digestions, the PCR products were ligated into the pTrcHis2C multiple-cloning site. Insertion of the cDNA was verified by restriction digestion, which was followed by full sequencing (McGill University and Genome Quebec Innovation Center, Montreal, Canada).

Expression and purification of recombinant p97/VCP.

p97^WT and mutant variants were expressed in the TOP10 Escherichia coli strain. Overnight starter cultures were diluted 50-fold in 2 liters of 2× YT medium (16 g/liter tryptone, 10 g/liter yeast extract, 5 g/liter NaCl) with 100 μg/ml ampicillin and grown at 37°C until they reached an optical density at 600 nm of 0.6. The cultures were subsequently induced with 300 μM IPTG (isopropyl-β-d-thiogalactopyranoside) and grown for another 4 h. The cells were pelleted by centrifugation (4,000 × g for 20 min) and lysed in buffer A (20 mM HEPES, pH 7.5, 300 mM NaCl, 5 mM MgCl₂, 2.5 mM dithiothreitol [DTT], and 20 mM imidazole) supplemented with 1 mg/ml lysozyme and complete protease inhibitors (Roche, Mississauga, Canada). Following sonication, the lysates were cleared by centrifugation at 26,000 × g for 45 min. The supernatant was then loaded on a 5-ml Ni²⁺ affinity column (GE Healthcare Biosciences, Uppsala, Sweden) preequilibrated with 10 column volumes of buffer A. Following a first wash with 10 column volumes of buffer A, bound proteins were subjected to an additional wash with 10 column volumes of buffer B (20 mM HEPES, pH 7.5, 300 mM NaCl, 5 mM MgCl₂, 2.5 mM DTT, and 35 mM imidazole). The proteins were eluted with a 35 to 500 mM imidazole gradient over 5 column volumes. Peak fractions containing p97 were pooled, concentrated on an Amicon Ultra column (molecular mass cutoff, 15,000 kDa), and loaded on a precalibrated 100-ml Superose-6 gel filtration column (GE Healthcare Biosciences, Uppsala, Sweden). Size-fractionated proteins were eluted as 1-ml fractions in buffer C (20 mM HEPES, pH 7.5, 150 mM NaCl, 5 mM MgCl₂, and 2.5 mM DTT). All purifications were performed at 4°C using the UKTA fast-performance liquid chromatography purification system (GE Healthcare Biosciences, Uppsala, Sweden). Protein concentrations were determined using the Bradford assay (Bio-Rad, Mississauga, Canada).

Native gel electrophoresis.

Ten micrograms of purified recombinant p97^WT or mutant variants was loaded on a 6% Tris-polyacrylamide gel (pH 8.0). Electrophoresis was performed at 4°C using 200 V and ice-cold 1× Tris-glycine buffer (pH 8.0) to prevent heat-induced denaturation.

Negative-staining EM.

p97 proteins were diluted to a concentration of 50 μg/ml in buffer containing 20 mM HEPES, pH 7.5, 150 mM NaCl, 10 mM MgCl₂, and 1 mM DTT in the presence or absence of 1 mM ATP (Sigma, Oakville, Ontario, Canada). For each protein, a 5-μl sample was spotted on a glow-discharged carbon-coated copper grid. The grids were then stained for 60 s with 5 μl of uranyl acetate and visualized using an FEI Tecnai 12 120-kV electron microscope. Digital images were collected with a Gatan 792 Bioscan 1,000 by 1,000 wide-angle multiscan charge-coupled device camera. Images were cropped at the level of the scale bar to show ∼25% of the full image.

Dynamic-light-scattering (DLS) measurements.

p97 protein samples were diluted to 100 μg/ml in buffer containing 20 mM HEPES, pH 7.5, 150 mM NaCl, 10 mM MgCl₂, and 1 mM DTT in the presence or absence of 2 mM ATP. Measurements were performed using the Zetasizer Nano ZS (Malvern) at 20°C.

ATPase activity assays.

p97 ATPase activity was assessed using the EnzCheck phosphate assay kit (Molecular Probes, OR) as previously described (6). This assay is based on the inorganic-phosphate-dependent conversion of 2-amino-6-mercapto-7-methylpurine riboside to ribose-1-phosphate and 2-amino-6-mercapto-7-methylpurine, which results in a shift of the maximum absorbance from 330 nm to 360 nm (29). For assessment of p97 ATPase activity, 50 nM of p97 (based on the ∼600-kDa hexamer) was incubated in 100 μl reaction buffer (20 mM HEPES, pH 7.5, 150 mM NaCl, and 10 mM MgCl₂) containing 200 μM of ATP. Parallel reactions were set without the addition of ATP to correct for background absorbance values. The absorbance at 360 nm was then measured at 20-s intervals for a total of 20 min at the physiological temperature of 37°C or 42°C for heat induction. The amount of inorganic phosphate released was quantified based on a KH₂PO₄ standard curve of 0 to 80 μM set in 100 μl reaction buffer. All reactions were preformed in duplicate for each experiment.

Protein fluorescence spectroscopy.

The intrinsic protein fluorescence was determined using the Edinburgh FLS-920 fluorometer. Protein samples were diluted to 62.5 μg/ml in buffer containing 20 mM HEPES, pH 7.5, 150 mM NaCl, 10 mM MgCl₂, and 1 mM DTT in the presence or absence of 2 mM ATP. The excitation wavelength was set at 295 nm, while fluorescence emission was monitored between 305 nm and 450 nm. The excitation and emission slits were set at 5 nm, and the measurements were performed using a high photomultiplier tube voltage setting. All measurements were performed at 20°C and corrected for background emission values. Four independent measurements were performed, each in triplicate, for each p97 protein variant.

Limited-proteolysis assay and Western blot detection.

Proteolysis reactions were performed at 37°C in a total volume of 50 μl containing 5 μg of p97, 250 ng of trypsin, and reaction buffer (20 mM HEPES, pH 7.5, 150 mM NaCl, 10 mM MgCl₂, and 1 mM DTT) in the presence or absence of 1 mM ATP for the indicated time intervals. The reactions were terminated by the addition of 0.5 mM phenylmethylsulfonyl fluoride and the reaction mixtures were boiled in 1× sodium dodecyl sulfate (SDS) loading buffer. Samples were subsequently subjected to SDS-polyacrylamide gel electrophoresis (PAGE) and transferred to polyscreen polyvinylidene difluoride membranes (Perkin Elmer, Zaventem, Belgium). Following blocking in 5% nonfat milk, the membranes were incubated in a monoclonal anti-p97 antibody at a dilution of 1:1,000 (BD Transduction Laboratories, San Jose, CA) for 1 h at room temperature. The blots were then incubated in horseradish peroxidase-conjugated anti-mouse secondary antibody and subsequently developed using the ECL Plus detection system. Visualization was performed using the Storm 840 scanner (GE Healthcare, Baie d'Urfé, Canada).

Liquid chromatography-tandem mass spectrometry sequencing of full-length p97/VCP and limited-proteolysis products.

Proteolysis reactions were performed by incubating 5 μg of p97^WT with or without 250 ng of trypsin in buffer containing 20 mM HEPES, pH 7.5, 150 mM NaCl, 10 mM MgCl₂, 1 mM DTT, and 1 mM ATP. Reaction mixtures were set in 50 μl volumes and incubated at 37°C for 60 min. Following termination with 0.5 mM phenylmethylsulfonyl fluoride, samples were boiled in 1× SDS loading buffer and subjected to SDS-PAGE, followed by Coomassie staining. The stained bands were excised and analyzed at the Institut de Recherches Cliniques de Montréal proteomics discovery platform (Montréal, Canada).

Statistical analysis.

Analysis of variance was conducted, followed by the Scheffé post hoc test or Tukey/Kramer analysis. Data were designated statistically significant only if the P value was equivalent to or less than 0.05. All tests were conducted using StatView 5.0 software (SAS Institute Inc., Cary, NC).

hIBMPFTD p97 mutants p97^R155P and p97^A232E form hexameric complexes similar to p97^WT in vitro.

To investigate the oligomerization patterns of p97^R155P and p97^A232E, recombinantly expressed p97 proteins, first purified on a metal affinity column, were size fractionated by gel filtration chromatography (Fig. 1A and B). p97^WT, the hIBMPFTD mutants p97^R155P and p97^A232E, and an ATPase-deficient mutant, p97^K524A, all eluted in two peaks: a minor peak within the void volume (Fig. 1A and B, peak 1) (∼37 to 43 ml) and a major peak overlapping with the 670-kDa thyroglobulin complex (Fig. 1A and B, peak 2) (∼47 to 63 ml). Further analysis of the major peak fraction by native gel electrophoresis also demonstrated that both p97^R155P and p97^A232E comigrated with p97^WT and the thyroglobulin complex (Fig. 1C). Interestingly, p97^K524, which encompasses a mutation abolishing ATP binding in the D2 ring, could not be resolved under the native gel electrophoresis conditions used. These results indicate that p97^WT and the hIBMPFTD mutants formed ∼600-kDa complexes consistent with hexameric assembly. To confirm ring-shaped assembly, the hexameric protein peaks (Fig. 1D) were analyzed by negative-staining EM. At ×160,000 magnification, p97^R155P, p97^A232E, and p97^K524A showed relatively homogeneous populations of ring-shaped particles notably similar to p97^WT (Fig. 1E, top). ATP binding had no effect on the ring-shaped assembly of p97^WT or mutant variants (Fig. 1E, bottom). Furthermore, all p97 protein samples contained some misfolded aggregates (not shown); however, there were no apparent differences in the structures or abundances of these aggregates between p97^WT and the mutant variants. Altogether, these results confirm that the hIBMPFTD p97 mutants and p97^K524A assemble into hexameric, ring-shaped complexes similar to p97^WT and display no inherent propensity for misassembly or aggregation.

hIBMPFTD mutants p97^R155P and p97^A232E confer a gain-of-function phenotype on p97 total ATPase activity and alter its intrinsic fluorescence profile.

The ATPase activities of p97^WT, p97^R155P, and p97^A232E were monitored under physiological temperature and saturating ATP concentrations. At 37°C, p97^R155P and p97^A232E displayed significantly higher ATPase activity than p97^WT (Fig. 2A and C and Table 1). The ATP hydrolysis rates of p97^R155P and p97^A232E were similar and about three times higher than the rate of p97^WT (Fig. 2C and Table 1). At 42°C, there was no significant increase in p97^WT ATPase activity; however, p97^R155P and p97^A232E displayed significant 1.7- and 1.4-fold increases, respectively (Fig. 2B and C and Table 1). Furthermore, p97^R155P's heat-induced ATPase activity was significantly higher than that of p97^A232E (Fig. 2C and Table 1). In contrast, p97^K524A displayed no measurable ATPase activity at either temperature (Fig. 2A to C and Table 1). Collectively, these data show that the hIBMPFTD mutants p97^R155P and p97^A232E display not only elevated ATPase activity, but also increased sensitivity to heat-induced upregulation of ATPase activity.

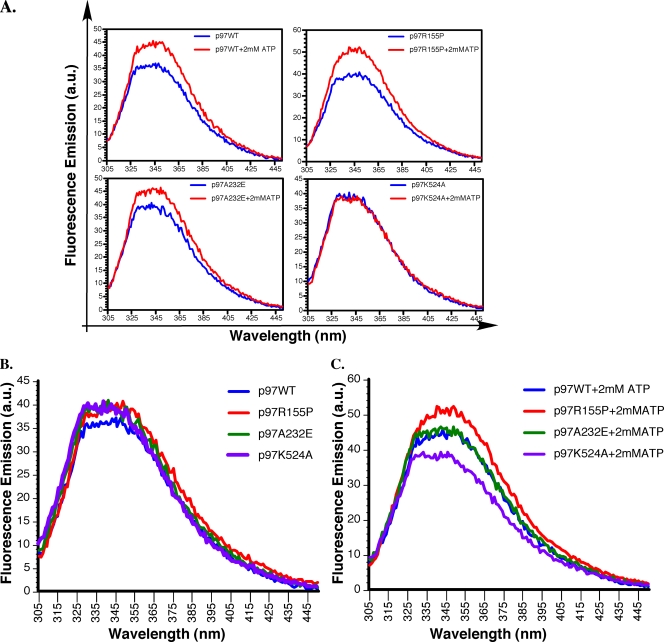

To investigate if the upregulation in p97 ATPase activity was correlated with changes in the conformational state of the AAA⁺ rings, a qualitative analysis was performed using intrinsic protein fluorescence spectroscopy (Fig. 3 and Table 2). In this assay, the change in protein fluorescence is inversely related to the hydrophobicity of tryptophan 476 (Trp⁴⁷⁶) within the D2 ring (27). In the absence of ATP binding, only p97^R155P showed significantly higher total fluorescence emission than p97^WT, which is indicative of increased basal accessibility of Trp⁴⁷⁶ (Table 2 and Fig. 3A). Both p97^A232E and p97^K524A also displayed higher total fluorescence emission than p97^WT, although it did not reach statistical significance (Table 2 and Fig. 3A). Upon ATP binding, p97^R155P and p97^A232E displayed significantly higher total fluorescence than p97^WT, which reflected increased solvent accessibility of Trp⁴⁷⁶ (Table 2 and Fig. 3B). On the other hand, p97^K524A displayed significantly lower total fluorescence than p97^WT and both hIBMPFTD-linked mutants, which is consistent with its inability to bind ATP in the D2 ring (Fig. 3B and C and Table 2). Comparison of the ATP-dependent changes in total fluorescence showed that p97^R155P underwent the largest change in protein fluorescence (Fig. 3C and Table 2). Altogether, these data suggest that p97^R155P undergoes the largest conformational change in response to ATP binding and that both p97^R155P and p97^A232E display ATP-dependent conformational alternations in the local region surrounding Trp⁴⁷⁶ within the D2 ring.

hIBMPFTD mutants p97^R155P and p97^A232E display loss of the protective effect of ATP binding on D2 ring proteolysis.

We further analyzed conformational differences between p97^WT and the hIBMPFTD mutants using a limited-proteolysis approach. Trypsin-mediated digestion of full-length p97 generated two predominant cleavage products, p87 and p58, both retaining a large NH₂-terminal epitope (residues 9 to 130) (Fig. 4A). Silver stain analysis ruled out the presence of additional cleavage products (Fig. 4B). Thus, p87 reflected the cleavage of the COOH-terminal domain, while p58 resulted from additional proteolysis of the D2 ring. Comparison of proteolysis kinetics between p97^WT and p97^R155P revealed similar susceptibility patterns in the absence of ATP addition, while p97^A232E and p97^K524A were more prone to proteolysis (Fig. 4A, left). Specifically, p87 proteolysis was complete at 90 min for p97^A232E and p97^K524A compared to 120 min for p97^WT and p97^R155P (Fig. 4A and B, left). These data indicate that the conformation of the COOH-terminal domain and the D2 ring are more “labile” in p97^A232E and p97^K524A. Furthermore, p97^WT showed an ATP-dependent delay in p87 and p58 degradation in which both cleavage products could be detected 120 min after the initiation of the reaction (Fig. 4A, right). In contrast, p87 showed increased susceptibility to proteolytic cleavage in all p97 mutants, with p97^A232E and p97^K524A having the most accelerated degradation kinetics. Conversely, p58 was most strongly protected in p97^R155P relative to all other p97 variants.

To identify the approximate sites of proteolysis, p97, p87, and p58 were sequenced using mass spectrometry (Table 3). p97 sequencing resulted in the generation of peptides covering 58% of its total amino acid sequence. The most N-terminal amino acid residue was determined to be Gly⁹, while Arg⁷⁷² was identified as the last COOH-terminal residue. A large part of the COOH-terminal domain of p97 (residues 773 to 806) did not contain trypsin cleavage sites and therefore likely generated a peptide too large for detection by mass spectrometry (data not shown). Sequencing of p87 identified Leu²⁶ in the NH₂-terminal domain and Arg⁷⁰⁹ at the COOH-terminal end, while the peptide coverage was determined to be 51% of the p97 total amino acid sequence. p58 sequencing covered 39% of the p97 amino acid sequence, starting with Met⁴⁶ and ending with Lys⁵²⁴ (Table 3). These results suggest that the increased proteolytic susceptibility of p87 in p97^R155P and p97^A232E is due to D2 ring destabilization between residues Lys⁵²⁴ and Arg⁷⁰⁹ (Fig. 4C).

hIBMPFTD p97 mutants, p97^R155P and p97^A232E, undergo ATP-dependent alteration in solution structure.

In the absence of ATP, p97 particle size distribution consisted of two populations: a population of ∼20-nm particles corresponding to assembled p97 (Fig. 5A and Table 4, peak 1) and a minor population reflecting large-diameter species (Fig. 5A and Table 4, peak 2). p97^R155P and p97^A232E showed distributions similar to that of p97^WT (Fig. 5A) and displayed no significant differences in the estimated diameter of either assembled p97 or the large-diameter species (Table 4). In all cases, the most abundant population reflected hexameric p97 and accounted for at least 80% of the total light-scattering intensity (Table 4, peak 1). Interestingly, assembled p97^K524 and its large-diameter species both displayed significantly larger estimated diameters, with the assembled population accounting for at least 90% of the light-scattering intensity (Fig. 5A and Table 4, peak1 and peak 2).

In the presence of physiologically relevant ATP concentrations, there were no significant changes in the solution structure of p97^WT. In comparison, the light-scattering intensity of assembled p97^R155P was significant reduced, and this effect correlated with an increase in the scattering intensity of the large-diameter population (Fig. 5B and Table 4). These results show an ATP-dependent shift toward increased abundance of the large-diameter population in p97^R155P. Furthermore, the estimated diameter of assembled p97^R155P was significantly reduced compared to p97^WT (Table 4). Similarly, p97^A232E displayed a pronounced increase in the abundance of the large-diameter population, which was correlated with a significant reduction in particle size (Fig. 5B and Table 4). However, unlike p97^R155P, the diameter of assembled p97^A232E was significantly reduced compared to the ATP-unbound state, as well as assembled p97^WT (Table 4). These effects were correlated with a significant increase in the heterogeneity of the population's size distribution profile, as reflected in the increased polydispersity index estimate (Table 4). Therefore, ATP binding changed the solution structure of p97^A232E and promoted the formation of large-diameter complexes. Moreover, the large-diameter population in p97^K524A displayed changes similar to those in p97^A232E; however, despite the increased abundance of the large-diameter population in p97^K524A, both the size and light-scattering intensity were not significantly different from those of p97^WT (Table 4). Interestingly, compared to p97^WT, ATP binding significantly reduced the diameters of assembled p97^R155P and p97^A232E but increased the diameter of p97^K524A (Table 4). Altogether, these data provide evidence for ATP-dependent alterations in the solution structure of hIBMPFTD mutants and indicate that ATP binding may facilitate the formation of large-diameter species.

hIBMPFTD p97/VCP mutations in Arg¹⁵⁵ and Ala²³² do not impair spontaneous self-assembly.

Using size exclusion chromatography and native gel electrophoresis, we showed that hIBMPFTD mutants p97^R155P and p97^A232E assembled into hexameric complexes and ruled out the possibility of misassembly or deoligomerization. Visualization by EM further confirmed the ring-shaped structure of the pathogenic p97 mutants. These results are in agreement with a previous finding that p97^R155H does not display an oligomerization defect (30) and are consistent with the NH₂ domain being dispensable for hexamerization (22, 33). We also showed that the p97 mutation A232E does not impair hexamerization, in spite of its localization in the D1 ring, which is necessary for p97 self-assembly (26). Residue Ala²³² is positioned at the junction between the D1 domain and the NH₂-D1 linker region (28). This peripheral localization is inconsistent with a role in regulating interprotomer interaction within the D1 ring. Other works have demonstrated that p97 oligomerization is spontaneous and that nucleotide binding to the D1 ring stabilizes the hexamer (26). The only single-amino-acid mutations known to prevent p97/VCP assembly affect the D1 Walker A residue, Lys²⁵¹ (6, 25), or the D1 second region of homology residue, Arg³⁶² (25). Mutations of residues lining the D1 pore (Arg³¹³, Lys³¹⁵, Thr³¹⁶, His³¹⁷, Glu³¹⁹, and Arg³²²) also do not influence oligomerization (6). Together, our results suggest that the disease severity associated with mutation in Ala²³² in hIBMPFTD is likely unrelated to an oligomerization defect in p97/VCP. Interestingly, our data also suggest that p97^K524A may form higher ring-shaped oligomers than p97^WT or hIBMPFTD mutant variants. This is evident in its migration pattern on native gel electrophoresis and its significantly larger estimated diameter in solution. Recent work has demonstrated that the D2 ring adopts a heptameric structure with a sevenfold symmetry when purified independently of the NH₂ domain and the D1 ring (3). It is possible that disrupting nucleotide binding in the D2 ring may also alter the fold symmetry of p97/VCP. Alternatively, the p97^K524A mutation may alter the shape of the hexamer in a way that influences its native gel migration and increases its apparent diameter in solution.

hIBMPFTD p97 mutants p97^R155P and p97^A232E show increased ATPase activity.

Under the conditions used, the specific ATPase activity of p97^WT was lower than the values previously reported (6, 14, 24), although different expression, purification, and assay conditions were used. Nevertheless, our data show an ∼3-fold increase in p97^R155P ATPase activities. In another report, the p97^R155H mutant displayed ATPase activity levels comparable to those of p97^WT, whereas heat-induced upregulation in ATPase activity was not assessed (30). One explanation for this discrepancy is the nature of the amino acid change associated with Arg¹⁵⁵. For example, DeLaBarre and colleagues showed that different amino acid substitutions for the D1 pore residue His³¹⁷ could have opposing effects on p97 ATPase activity, in spite of the fact that His³¹⁷ is not directly involved in ATP binding or hydrolysis (6). Nevertheless, our results pose the possibility that the p97 NH₂ domain is involved in the positive regulation of p97 basal ATPase activity. The strong ATP-dependent protection of the p58 N-terminal fragment of p97^R155P in the limited-proteolysis assay suggests increased affinity for ATP binding in the D1 ring. Changes in nucleotide-binding affinity may alter the cooperativity between the D1 and D2 rings. Furthermore, previous studies demonstrated that some adaptor proteins binding to the p97 NH₂ domain (i.e., p47) downregulate p97 ATPase activity (14), while others had no effect (i.e., Npl4/Ufd1) (2). It remains to be determined whether any of the p97 ubiquitous NH₂ domain binding proteins could play a role in the positive regulation of its ATPase activity. Interestingly, deletion of the NH₂ terminus does not influence p97 ATPase activity (20, 22, 33).

Our results also show that, like p97^R155P, p97^A232E displayed upregulated ATPase activity. The contribution of the D1 ring to p97 basal ATPase activity is unclear (24, 33); however, it is known to be activated in response to heat stimulation (24). Our data show that the ATPase activities of both mutants are significantly upregulated at 42°C but do not rule out the ectopic activation of the D1 ring at 37°C. Accordingly, this increase in basal ATPase activity could be attributed to either D1 ring activation at 37°C or increased activity of the D2 ring, or both. On the other hand, the increased sensitivity to heat stimulation suggests alteration in the D1 ring function. Nevertheless, an increase in ATPase activity may detrimentally alter p97 cell biological activities by destabilizing p97-mediated protein interactions or, alternatively, by leading to the gain of new toxic functions (i.e., increasing binding affinity or promiscuity of p97/VCP-substrate interaction). Further studies are needed to address the mechanism by which hIBMPFTD mutations upregulate p97 ATPase activity and the possible implications for biological systems.

Evidence of structural defects in hIBMPFTD p97/VCP mutants p97^R155P and p97^A232E.

Our results indicate that the Arg¹⁵⁵ and Ala²³² mutations influence distant residues within the p97 structure, a fact consistent with the dynamic nature of p97 interdomain communication (21, 22). Considering that Trp⁴⁷⁶ fluorescence has been used to report ATP-dependent conformational changes within the D2 ring (27), our data suggest that p97^R155P and p97^A232E display different D2 ring conformations than p97^WT. We further defined the affected region between residues Lys⁵²⁴ and Arg⁷⁰⁹, which covers part of the D2 ring and the COOH-terminal domain. The tryptic proteolysis assay showed that this region is more susceptible to proteolysis. Wang et al. previously demonstrated that p97^WT showed a large increase in protein fluorescence in response to ATP binding and that this was correlated with protection of the D2 ring from proteolysis (27). While this is consistent with the results reported here, both p97^R155P and p97^A232E showed significantly higher ATP-dependent shifts in protein fluorescence than p97^WT with only partial D2 ring protection during the limited-proteolysis assay. It is possible that an elevated rate of nucleotide exchange may account for the increased proteolytic susceptibility of the D2 ring, especially since the p97 D2 ring adopts a flexible state directly following nucleotide release (5). Alternatively, the increased ATPase activity may be consequential to structural defects imposed by mutations in residues Arg¹⁵⁵ and Ala²³². In either case, the results indicate that the ATP-bound D2 ring adopts a relaxed conformation in p97^R155P and p97^A232E compared p97^WT.

Interestingly, while p97^R155P displayed a larger change in protein fluorescence than p97^A232E, it was not correlated with faster proteolysis kinetics.

A possible explanation is that the Arg¹⁵⁵ mutation increases the affinity for nucleotide binding, as suggested by the strong protection of p58 during the limited-proteolysis assay. Nevertheless, both p97^R155P and p97^A232E showed increased proteolytic susceptibility in the region between residues Lys⁵²⁴ and Arg⁷⁰⁹. Importantly, this region contains residues central to p97 function in ER-associated degradation (ERAD), specifically Arg⁵⁸⁶ and Arg⁵⁹⁹, as well as Phe⁵⁵¹ and Trp⁵⁵² (6). Arg⁵⁸⁶/Arg⁵⁹⁹ have been suggested to form a “denaturation collar” for the processing of misfolded ERAD substrates, and Phe⁵⁵¹/Trp⁵⁵² have been proposed to bind to misfolded substrates through hydrophobic interactions (8, 27). It is also known that Arg⁵⁸⁶/Arg⁵⁹⁹ adopt different localizations relative to the D2 pore during the ATPase cycle (5). Thus, the conformational integrity of the D2 ring is necessary for proper substrate processing, and its perturbation in hIBMPFTD mutations may represent a possible mechanism of pathogenesis. Although it is still unclear if hIBMPFTD-linked p97 mutations influence the accessibility or function of the “denaturation collar,” our data indicate that the overall conformational state of the D2 ring is altered in mutant p97 complexes. Indeed, hIBMPFTD-linked mutation in residue Arg155 (R155H) has been shown to impair the degradation of the ERAD substrate, ΔF508-CFTR (cystic fibrosis transmembrane conductance regulator), in C2C12 skeletal myoblasts (30). Future studies are necessary to substantiate whether all hIBMPFTD-linked p97 mutations result in similar alterations in the D2 ring conformation and if this is indeed a relevant mechanism of pathogenesis in vivo.

Consequences of hIBMPFTD mutations for the p97/VCP solution structure.

DLS is a technique used to resolve particle size distribution in solution. Our analysis clearly showed a didispersed distribution consisted of assembled p97/VCP and large-diameter species. The hydrated diameter of p97, estimated at 20 to 25 nm, is consistent with published structural data (22). Remarkably, we showed an ATP-dependent increase in the light-scattering intensity of the large-diameter population in samples containing p97^R155P and p97^A232E, but not p97^WT or p97^K524A. Considering that there was no significant increase in diameter, the increase in the light-scattering intensity should be attributed to increased abundance of the large-diameter species. This finding appears at odds with our EM images, which show assembled, ring-shaped p97/VCP in the presence of ATP. However, it is important to note that the percent intensity measurements in DLS do not reflect the actual proportion of the large-diameter species versus hexameric p97 particles and that DLS detects large-diameter species with high sensitivity. Overall, based on the EM study and the ATPase activity analyses, we conclude that hexameric p97^R155P and p97^A232E remain the predominant populations. However, in solution, p97^R155P and p97^A232E show an ATP-dependent propensity to assemble into large-diameter particles. The fact that the estimated diameter of these particles was ∼10 times larger than the diameter of the assembled hexamers poses the possibility of ATP-mediated aggregate formation. Alternatively, the large-diameter particles may represent a population of transiently interacting p97 hexamers.

Together, these biochemical data provide the first evidence of structural defects associated with hIBMPFTD p97 mutations. Importantly, these defects were correlated with increased ATPase activity and alterations in the mutant p97 solution structure. It remains unclear whether these defects could be generalized to other hIBMPFTD p97 mutations, especially since both mutations, R155P and A232E, are relatively rare (13). It is known that some p97 mutants, such as p97^R95G and p97^R155H, show reduced solubility in cell culture models (30). Consistently, our initial analysis of p97^R95G expression in recombinant expression systems also showed reduced solubility (unpublished data). Thus, it remains to be seen if this effect is secondary to structural and biochemical defects such as those reported here. We propose that hIBMPFTD mutations influence the D2 ring conformation by increasing its flexibility and reducing its compactness upon ATP binding. Considering the newly proposed role of the D2 ring in the processing of protein substrates (6, 8), these defects may have detrimental consequences for p97 cell biological functions.
